Product Description

XPROG-M V5.84 Highlights:

• Latest Software Version: V5.84,Firmware:V4.4
• With USB Dongle, no need to activate
• Add new authorization: AUTH-0028-1 authorized Renesas V850 and AUTH-0028-2 authorized Renesas SuperH 2017/10/9
• Language:English

XPROG-M V5.84 Using Tips:

• You are not allowed to use this new dongle to update Xprog old version to V5.84
• Close all antivirus software. Otherwise, the x-prog software may be killed.
• Disconnect internet. Otherwise, internet may damage the material.
• Uninstall all old xprog-m or xprog box software before installing V5.84 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise, the material will be damaged and will lose its guarantee…
• Never try to update, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.

XPROG-M V5.84 Permissions:

• AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM).
• AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM).
• AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM).
• AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
• AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
• AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secure eeprom and flash memory)
• Authorization AUTH-0007 ST M35080. Read/write/erase device in delivery state.
• AUTH-0008 BMW EWS3 authorization.
• AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory).
• Authorization AUTH-0010 MB ZGS001.
• AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory) National authorization CR16 of AUTH-0012 (allows to read/write EEPROM memory).
• ST7 family authorization, ST10 AUTH-0014 (allows to read/write internal flash).
• Authorization AUTH-0015 MPC5xx (depending on the device program automatically detects MPC5xx, M95xxx device type, flash, external flash and memory size configuration)
• AUTH-0018 Motorola HC12, HC912, MC9S12, authorization bypass security authorization (allows to read/write secure EEPROM and flash memory)
• AUTH-0020 arm (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
• AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/edit mileage, chassis number (VIN), vehicle number serial and PIN code).
• AUTH-0023-1 MAC7xxx
• AUTH-0023-2 XC23xx
• AUTH-0024-1 MC9S12Cxx
• AUTH-0024-2 MC9S12XE
• AUTH-0024-3 9S12XE security
• AUTH-0024-4 MC9S12HA/HY/P
• AUTH-0025-1 MPC/SPC5xxx authorized 2016/3/13
• AUTH-0027-1 HC(S)908 authorized update 2016/3/13
• AUTH-0027-2 HC(S)908 sercurity authorized 2016/3/13
• AUTH-0028-1 Renesas V850 Authorized 2017/10/9
• AUTH-0028-2 authorized by Renesas SuperH 2017/10/9

XPROG-M V5.84 Adapters:

• ADP-0001 TMS370 PLCC28 Programming Adapter
• ADP-0002 TMS370 PLCC44 Programming Adapter
• ADP-0003 TMS370 PLCC68 Programming Adapter
• ADP-0004 Motorola HC05B/X PLCC52 Programming
• Adapter ADP-0005 Motorola HC05B/X QFP64 Programming
• Adapter ADP-0006 ST M35080 In-Circuit Programming
• Adapter ADP-0008 TMS374 Family In-Circuit Programming
• Adapter MC68HC05V12 ADP-0009 Programming
• Adapter ADP-0010 TMS374 Embedded Programming
• Adapter ADP-0011 HC11EA9/E9 Programming
• Adapter ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter Additional adapter for 5M48H p-flash ADP-0019 rev.
• AT EWS3 adapter EEPROM adapter
• QFP28 adapter
• QFP64 adapter
• QFP80 adapter
• QFP112 Adapter
• QFP144 adapter

Installation Notice:

XPROG-M V5.84 windows system required as below:

• Windows system must be windows XP 32bit or windows 7 64bit, all patch software for windows system must be already installed and windows working properly…
• The windows system must have at least 2 partitions (except CD-ROM.)
• Cannot work with virtual hard disk.

XPROG-M V5.84 install manuals in words:

• Click the “installation.reg” file, get the file information at regedit.
• Install “AdbeRdr11000_zh_CN.exe” file, it is a must, otherwise Xprog software will not start.
• Plug Xprog main interface to computer, install USB driver.
• Copy the “XPROG-BOX5.84” folder to the desktop, and open it, and run the “xprogdesktop.exe”, then open the software.

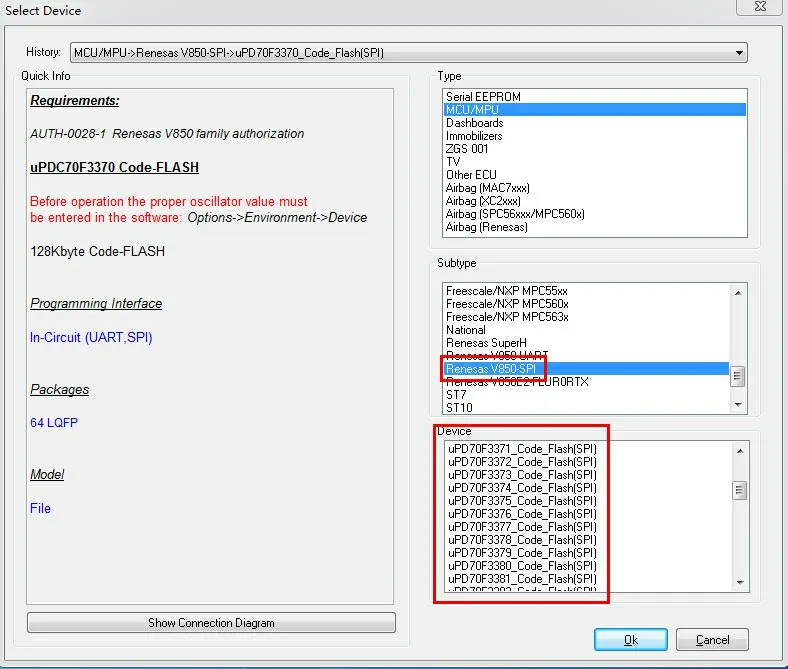

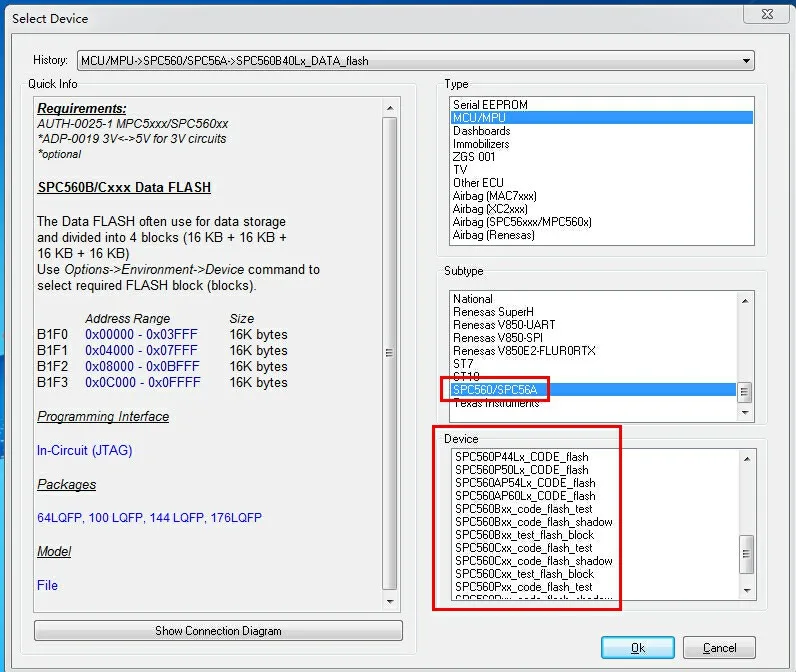

XPROG-M V5.84 software display:
